Needle Flame Tester, Needle Flame Test Apparatus

Needle-flame Tester could be applicable to ignition hazard test, combustibility test of electronic industry, home electronic appliance and materials. This tester specifies a needle-flame test to simulate the effect of a small flame which may result from fault conditions, in order to assess product and material‘s ignition risk and fire retardance by a simulation technique the fire.

Product Description：

Needle Flame Tester, Needle Flame Test Apparatus

Model:BND-ZY

Product Description

IEC60695-11-5 NEEDLE FLAME TESTER

Needle-flame Tester could be applicable to ignition hazard test, combustibility test of electronic industry, home electronic appliance and materials. This tester specifies a needle-flame test to simulate the effect of a small flame which may result from fault conditions, in order to assess product and material's ignition risk and fire retardance by a simulation technique the fire.

This product is designed and manufactured according to IEC60695-11-5:2004(GB/T5169.5-2008) Fire hazard testing for electric and electronic products-part 2: Test methods- needle-flame test methods.

Needle-flame Tester’s crust and important parts are made by Stainless Steel, Sculpt daintily, endure smoke corrupt, high automatism, high reliability of key parts of apparatus, numeric shows. Fixture could be adjusted. Test procedure could be controlled automatically which is convenience and reliable.

Detailed Images

needle burner	the hole Φ 0.5mm ± 0.1mm, outside diameter ≤ Φ 0.9mm, length ≥ 35mm,
Material	stainless steel
burner angle	tilt 45 ° (test) or vertical (adjust the flame height)
Application time	0-999 .9 s ± 0.1s adjustable (normally choose to 30s)
Burning duration	0-999 .9 s ± 0.1s, auto record, manual suspension
flame height	12mm ± 1mm (with a height measurement apparatus)
Burn gas	95% of the butane gas (Pressure：Less than 0.2MP)
temperature measurement range	0 ~ 1000 ℃
flame temperature requirements	from 100 ℃ ± 2 ℃ 700 ℃ ± 3 ℃ rise to the time in 23.5 seconds ± 1 seconds
Thermocouple	Φ0.5mm (K type)
experimental background	black background
test procedure	automatic control
reference standard	IEC60695 -11-5-2004, GB/T5169.5-2008
inside dimension	0.5 cubic meters, stainless steel chassis
equipment dimensions	1000mm wide × 650mm deep × 1300mm high
power supply	AC220V ± 5%, 50Hz, 0.3KVA

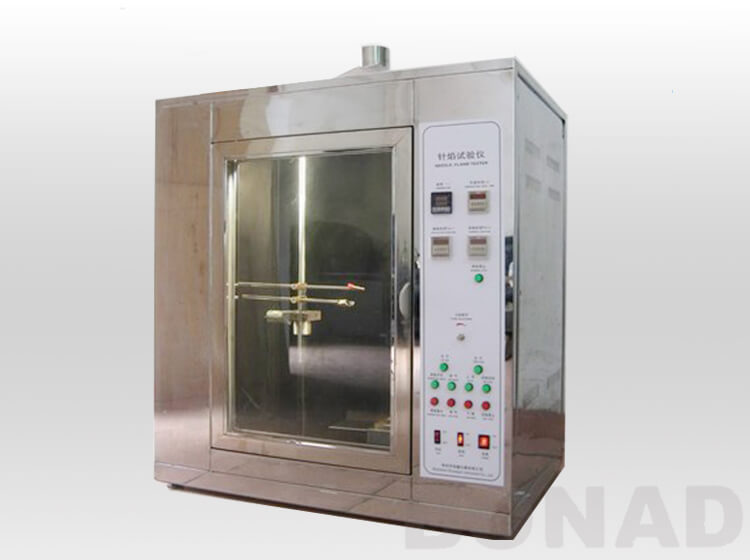

Picture shows

needle-flame-testing-device (1).jpg
