Product Description：
Name：Proof Tracking Index tester / Proof Tracking Test Apparatus/Dielectric Tester
Type：BND-LD
Product Description
IEC60335-1Proof Tracking Index Tester for Leakage Current test
The proof Tracking tester for electric and electronic products, household appliances, and its material is resistant to leakage from the mark test, to simulate the live parts of different polarity or between live parts and grounded metal parts may cause the insulator leakage measurement and evaluation of the specified voltage, the insulator in the relative resistance to leakage when the water effect of the electric field and impurities from the mark. The device in accordance with national standards GB/T4207-2003 (IEC60112-2003) "solid insulating materials under moist conditions compared to the determination method of tracking index and index of resistance to tracking and GB4706.1-2005" Household and similar electrical appliances - Safety part I: General Requirements set forth in the relevant provisions of the design and manufacture.

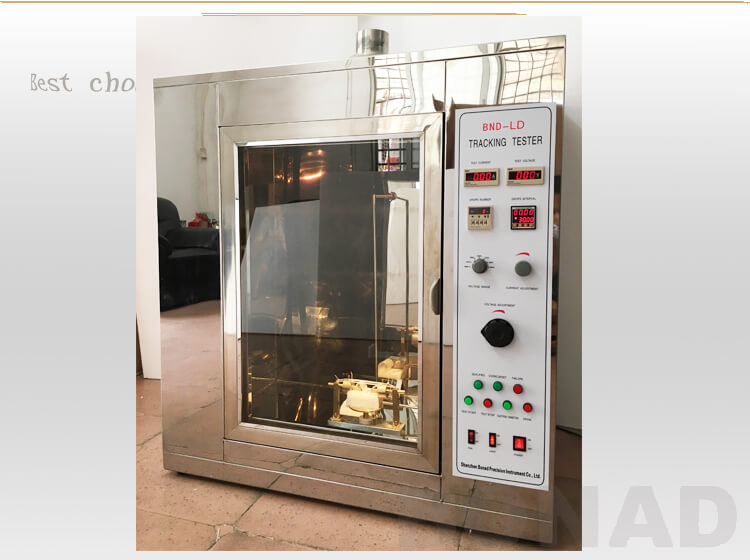

Detailed Images
| the electrode material | rectangular electrode - platinum metal |
| the electrode pressure | 1.0 ± 0.05N |
| the distance between electrodes | 4.0mm ± 0.01mm, angle 60 ° ± 5 |
| the electrode voltage | 100 ~ 600V (48 ~ 60HZ) adjustable short-circuit current 1.0 ± 0.1A, voltage drop is less than 10% |
| drops of liquid height | 30 ~ 40mm adjustable |
| the size of the drops | 44 to 55 drops / 1cm3 Adjustable |
| drops Time | 30s ± 5s, |
| the number of drops | 0 to 9999 times adjustable |
| the leakage judge | loop current greater than 0.5A and maintain the 2 seconds the relay to cut off the current, indicating that the sample failed |
| the test process | automatic control of test procedures, independent ventilation |
| reference standards | IEC60112-2003, GB/T4207-2003, GB4706.1-2005 |
| the studio volume | 0.5 cubic |
| the device outer dimensions | 1000mm wide x 650mm deep x 1300mm high |
