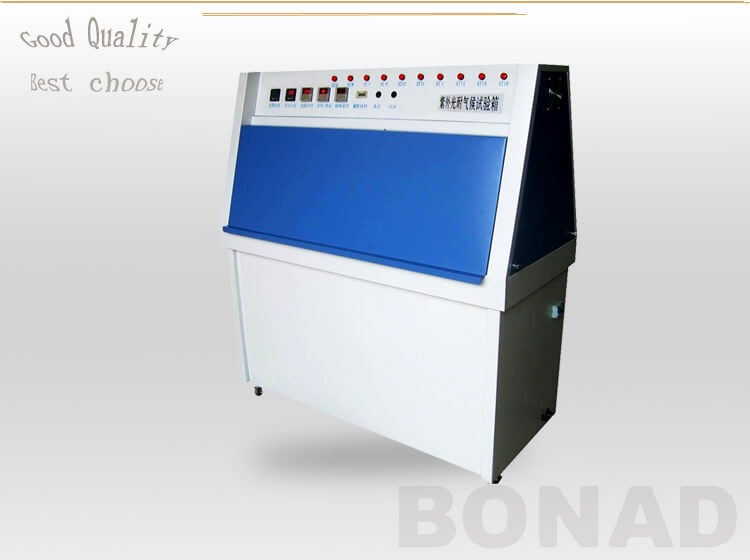

      UV-resistant climate test chamber BND-HZW

      This series is applicable for the sunlight resistant test of nonmetallic materials and aging test of artificial light sources.The uv weather resistance test chamber can provide reliable aging test data to make the exact prediction of products‘ weathering fastness(ageing resistance)., which is conducive to sift and optimize the formula. It is used in many industries, such as: paint, inks, resin, plastics, printing and packaging, adhesives, auto and motorcycle industry, cosmetics, metal, electronic, electroplating, medicine,etc.
      Description

      Product Description:

      Name:UV-resistant climate test chamber

      Type:BND-HZW


      Purpose:

      This series is applicable for the sunlight resistant test of nonmetallic materials and aging test of artificial light sources.The uv weather resistance test chamber can provide reliable aging test data to make the exact prediction of products' weathering fastness(ageing resistance)., which is conducive to sift and optimize the formula. It is used in many industries, such as: paint, inks, resin, plastics, printing and packaging, adhesives, auto and motorcycle industry, cosmetics, metal, electronic, electroplating, medicine,etc.


      Structure:

      1,The inner bladder of the chamber is made of imported high-class stainless steel plate while the outer bladder is made of A3 steel plate sprayed with plastic.

      2, The heating mode adopts inner bladder trough type heating with its rapid temperature rise and even temperature distribution.

      Product Spec.and Technical parameter table

      model

      BND-HZW-01

      Stidio size(mm)

      D

      450

      W

      1170

      H

      500

      Dimensions

      D

      660

      W

      1330

      H

      1130

      Temperature Range

      RT+10ºC-70ºC

      Humidity Range

      75-98%RH

      Humidity uniformity

      ±2%

      Temperature uniformity

      ±2ºC

      Temperature fluctuation

      ±0.5ºC

      Standard dimension of sample

      75*150mm or 75*300mm

      water tank depth

      25mm,automation

      Effective radiation area

      900*210mm

      UV Wavelength

      UV-A: 315-400nm/ UV-B: 280-3150nm/UV-C:< 280

      Test time

      0-999H adjustable

      Outer /Inner material of box

      SUS304

      Black Panel Temp

      40ºC-65ºC

      power supply

      380V

      Power Output

      4KW

      Standard Configuration

      A roll of wet bulb gauze,Three insurance,16th Lamp. one radiometer

      Standards Applied

      ASTM D4329.D499.D4587.D5208.G154.G53.ISO4892-3.ISO11507.EN534.prEN1062-4.BS2782.JIS D0205.SAE J2020
