Product Description：

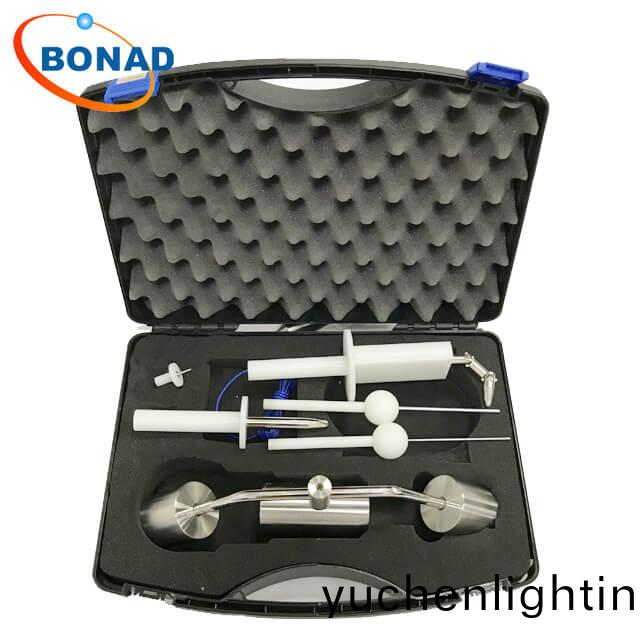

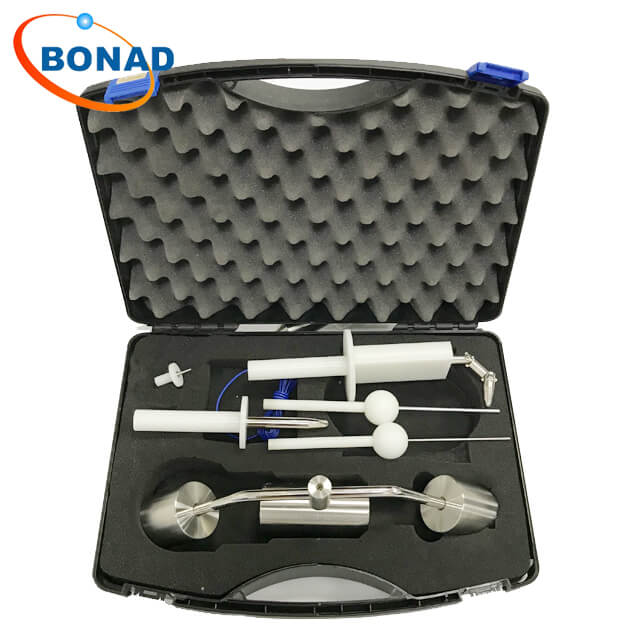

UL / IEC / EN 61010 IEC61032 Test Probe Kits BND-TPK03
Model:BND-TPK03
Product Details:
Several Different accessibility probe kits are available for specific standards. Kits can be created for other standards on request. Probe Kits offer substantial cost savings not to mention added convenience. The BND-TPK-03 contains the devices listed in the core of the UL / IEC / EN 61010 requirements. It includes the following:
· IEC Jointed Finger Probe (w/ banana jack in handle) (BND-B)
· Test Pin Probe: short (BND-13)
· Hazardous Live Parts Probe (BND-TB4)
· Rigid Finger Probe (BND-11)
· Preset Controls Probe (BND-TB3)
· Ball Pressure Tester (BND-QY102)
Meets Requirements for Testing Standard(s) including but not limited to:IEC 61010
Datasheet of the Test probe kit 03:
| BND-B test probe B | ip2x test probe B | IEC61032 IEC60950 IEC60335 IEC60529 IEC60045 IEC60884 IEC60745 | Knurled Finger Diameter:12mm Knurled Finger Length:80mm Baffle Plate Diameter:50mm Baffle Plate Length:100mm Baffle Thickness:20mm |
| BND-13 Short Test Pin | Short test pin 13 | IEC60065 IEC60335 IEC61032 | The probe Diameter:Head 3mm Tail 4mm The probe Length:15mm Dam-board Diameter:25mm Dam-board Thickness:4mm |
| BND-11 Rigid Test Probe 11 | Rigit test finger probe 11 | IEC61032 IEC60065 IEC60335 IEC60884 | Nodular Finger Length:80mm Nodular Finger Diameter:12mm Dam-board Diameter:50mm Dan-board Thickness:5mm |
| BND-QY102 Ball Pressure Apparatus | ball pressure test apparatus | IEC60695-10-2 IEC60884 IEC60320 IEC60335 IEC60598 IEC60950 | Ball diameter:5MM Total test pressure:20N±0.2N Samples bearing Diameter:50mm,Length:100mm Solid stainless steel cylinder |
| BND-TB4 4MM test probe | 4mm diameter of test probe pin | IEC61032 IEC60529 | Test Probe Length:100mm Test probe Diameter:4mm Dam-sphere Diameter:3.5mm Handle Diameter:10mm Handle Length:100mm |
| BND-TB3 3MM test probe | 3mm diameter of test probe pin | IEC61032 IEC60529 | Test Probe Length:100mm Test probe Diameter:3mm Dam-sphere Diameter:3.5mm Handle Diameter:10mm Handle Length:100mm |
