Product Description：
Name：MT05S 1-Wire Soil Moisture Sensor, Arduino, Raspberry PI,One-Wire Soil Humidity Sensor
Type：MT05S
MT05S is 1-Wire soil moisture sensor, measuring soil moisture content, temperature and EC(Conductivity) according to the order information. It sealed with resin packaged plastic body with sensing rods which can be insert directly into the soil with long time stability. Sensor with relatively small size and can be used for pot culture and Seedling tray. The sensor is applicable for science research, irrigation, greenhouse, smart agriculture etc.
■ Integrated with Soil Moisture, temperature or with EC (Conductivity) measurement
■ 1-Wire bus interface, Operation compatible with DS18B20
■ Directly connect with MCU, Arduino, Raspberry PI or other modules by only one I/O pin, No other signal conversion board required, Software library for DS18B20 can be reused to read/write the sensor
■ ROMCODE can be set by extension function command for easily addressing
■ Power Supply 2.7-12V DC, Low Quiescent current Max. 30uA
■ Low salinity sensitivity and Minimal soil disturbance
■ Water proof to IP68 ratings and can be directly buried into soil
■ High accuracy with excellent stability
■ Reverse power protection and Built-in TVS/ESD protection
■ ODM/OEM Service
Specification-MT05S
| Measuring parameters | MT05S-A : Soil Moisture, EC and Temperature MT05S-B : Soil Moisture, Temperature |
| Power Supply | 2.7-12V DC |
| Power Consumption | Quiescent Current : Max. 30uA (Standby mode) Measuring Current : 15mA during 100ms measurement (Active mode) |
| Output Interface | 1-Wire bus interface with the same protocol and time slot as DS18B20’s |
| Soil Moisture Measurement (FDR Method) | Soil Moisture (VWC-Volumetric Water Content): Range:0%-100% (air – water) Resolution: 0%-50%: 0.1%, 50%-100%: 0.5% Accuracy: 0%-50%: ±3%, 50%-100%: ±5% Apparent dielectric permittivity Epsilon: Range:0.88-81.88 (air – water) Resolution: 1.00-40.00: ±0.1, 40.00-81.00: ±0.5 Accuracy:1.00-40.00: ±1, 40.00-81.00: ±3 |
| EC Measurement (Conductivity) | Range: 0-23ds/m (0-23000us/cm) Resolution: 0-5ds/m, 0.01ds/m; 5-23ds/m, 0.1ds/m Accuracy: 0-5ds/m, ±5%; 5-23ds/m, ±10% EC temperature compensation: 0-50°C |
| Temperature Measurement | Range: -40~80°C Resolution:0.1°C Accuracy:0-50°C: ±0.5°C; -40-80°C: ±1.0°C |
| IP Ratings | IP68 |
| Operating Temperature | -40~85°C |
| Cable Length | 5 meters |

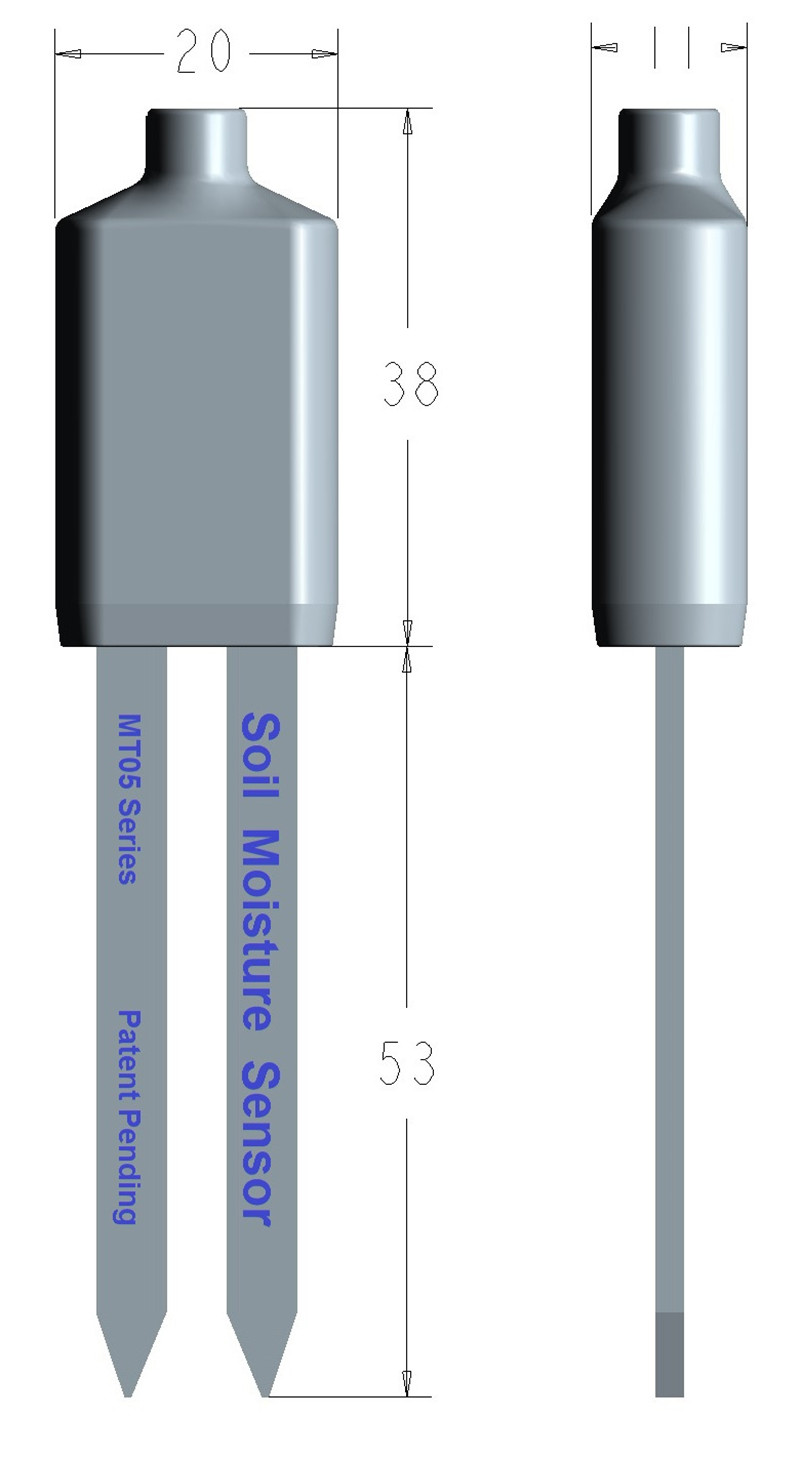

| Dimension | 20*11*95mm |
Ordering Information
| Parameters | Code | Comments |
| Code 1: Product Series | MT05S | MT05S series sensor with 1-Wire Interface |
| Code 2: Measuring Parameters | A B | Soil Moisture & Temperature & EC Soil Moisture & Temperature |
| Code 3: Power Supply | B | 2.7-12V DC |

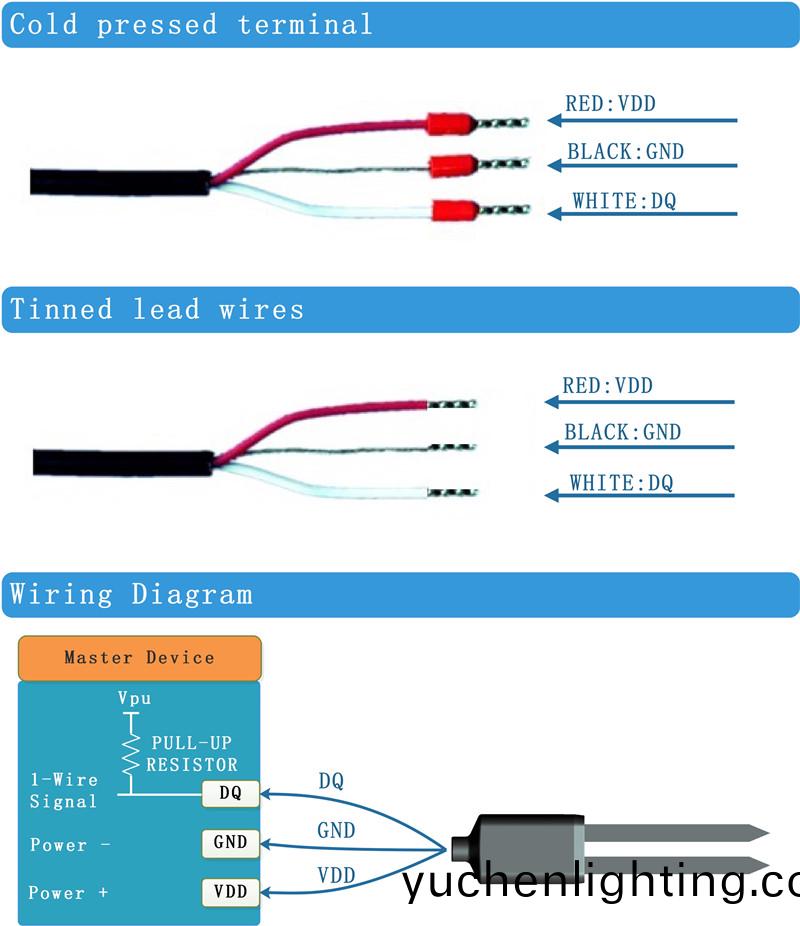

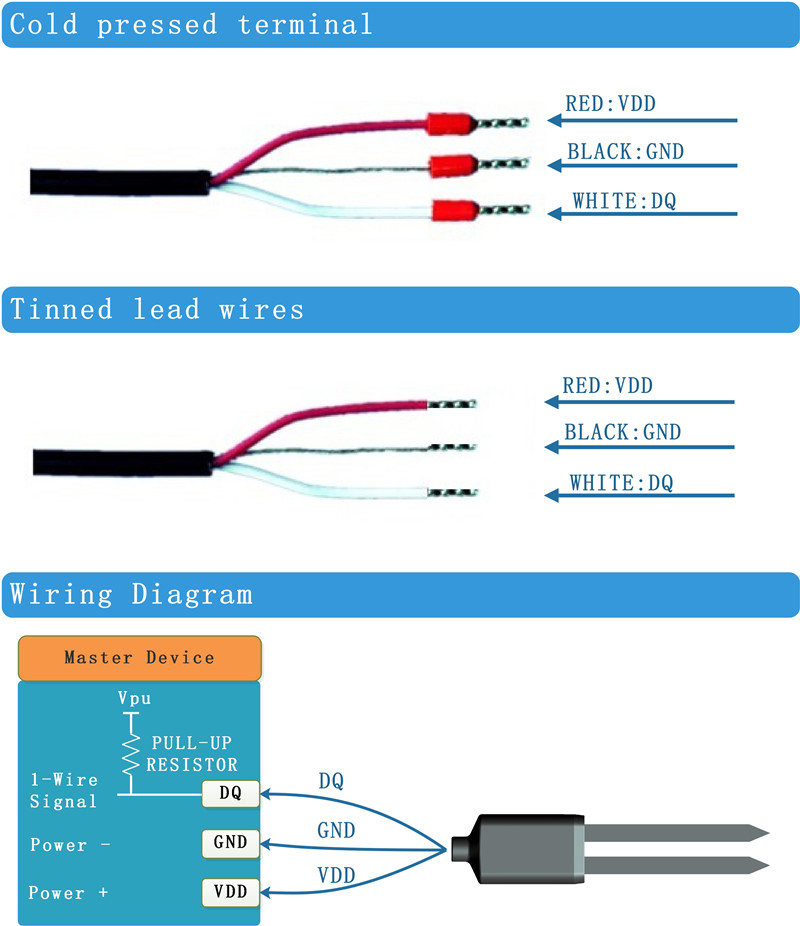

| Code 4: Connector | B C | Cold pressed terminal pre-tinning wire |
| Code 5: Cable Length | 005 | 5 meters |
| Ordering Code Example: MT05S sensor with 1-Wire Interface, Measuring Parameters Soil Moisture & Temperature & EC, 2.7-12VDC Power supply, Cold pressed terminal, Cable Length 5 meters. Ordering Code is : MT05S-ABB005 | ||
