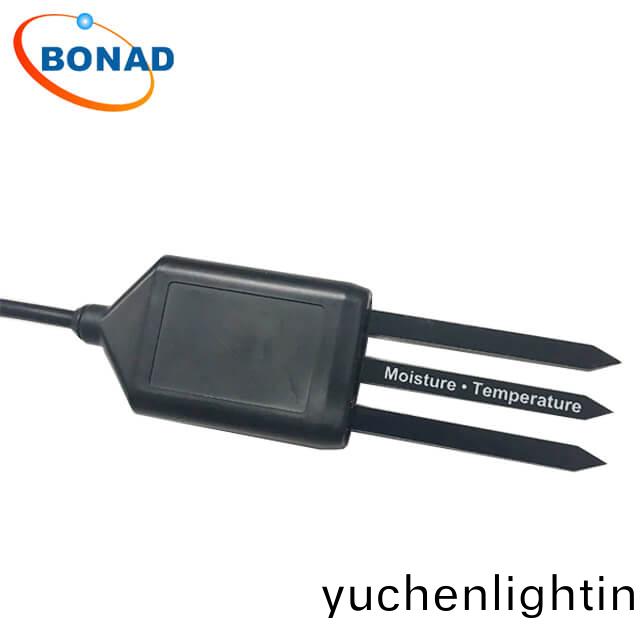

      MT10 SDI-12 Output Soil Temperature And Moisture Sensor


       We designed the MT-10 to measure the water content, electrical conductivity, and temperature of soil. The MT-10 uses an oscillator running at 70 MHz to measure the dielectric permittivity of soil to determine the water content. A thermistor in thermal contact with the sensor prongs provides the soil temperature. The Polyurethane coating on the MT-10 circuit board protects the components from water damage and gives the sensor a longer life span.










      Description



      Product Description：
      Name：MT10 SDI-12 Output Soil Temperature And Moisture Sensor
      Type：BND-MT10
      We designed the MT-10 to measure the water content, electrical conductivity,
and temperature of soil. The MT-10 uses an oscillator running at 70 MHz to
measure the dielectric permittivity of soil to determine the water content. A
thermistor in thermal contact with the sensor prongs provides the soil
temperature. The Polyurethane coating on the MT-10 circuit board protects the
components from water damage and gives the sensor a longer life span.

      Specifications
      Volumetric Water Content
      Range: 0 (air) to 100 (water)

      Temperature
      Range: -40 to 80 ℃
      Resolution: 0.01 ℃
      Accuracy:±0.5 ℃

      General
      Dimensions: 10 cm (1) x 3.2 cm (w) x 0.7 cm (d)
      Prong Length: 5.2 cm
      Dielectric Measurement Frequency: 70 MHz
      Measurement Time: 150 ms (milliseconds)
      Power requirements: 3.6 to 30 VDC, 0.3mA quiescent, 10mA during 150 ms
measurement

      Output: SDI-12 / RS485 MODBUS RTU
      Operating Temperature: -40 to 80 ℃
      Connector Types: 3.5 mm (stereo) plug or stripped & tinned lead wires
(Pigtail)
      Cable Length: 5 m standard; Maximum 75 m. Please contact if you need longer
cable lengths.

      PHYSICAL CHARACTERISTICS
      SENSOR NAME
      MT10
      DIMENSIONS
      10 cm X 3.2 cm
      CABLE LENGTH
      5 meters
      * Custom cable lengths are available for an additional cost.

      Type Selections
      Code number
      Code
      Code info.
      Code1：model
      MT10

      Code2：Measurement parameters
      A
      B
      Soil moisture, Soil temperature（SDI-12）
      Soil moisture, Soil temperature, soil electrical conductivity (EC). Three parameter measurement（RS485 ONLY）
      Code3：
      Soil moisture range
      A
      0-100%
      Code4：
      Electrical conductivity range（RS485 ONLY）
      A
      B
      C
      D
      0-5000us/cm （RS485 ONLY）
      0-10000us/cm（RS485 ONLY）
      0-20000us/cm（RS485 ONLY）
      NONE
      Code5：
      CONNECTION TYPES
      A
      B
      PIGTAIL CABLE
      STEREO CABLE （SDI-12 ONLY）
      Code6：Output
      A
      B
      SDI-12
      RS485 MODBUS RTU
      Code 7：cable lengths
      005
      XXX
      5 meters
      Custom, XXX is an arbitrary length (unit: m)
      Model example：
      MT10 Sensor, Soil moisture, Soil temperature, soil moisture range is 0-100%, interface SDI-12, connection type is STEREO CABLE, 5 meters cable length.
      Type selection code：MT10 - A A D B A 005
